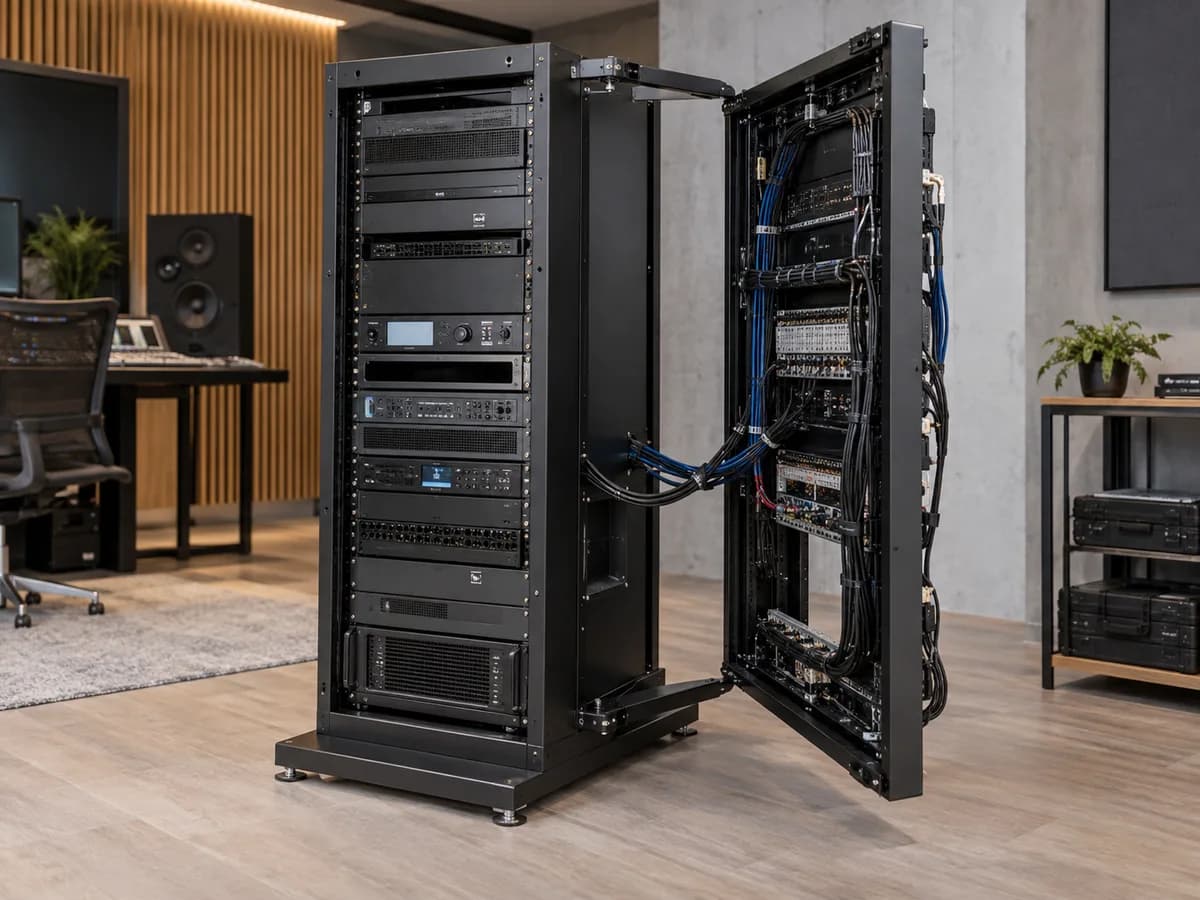

Swing-frame floor racks

Built around your application.

A floor-supported swing-frame rack uses a hinged equipment frame to make rear connections accessible. Unlike a slide-out rack, it needs a clear swing arc and a cable arrangement that tolerates the planned movement. Share device depths, cable routes and service frequency. Weight distribution, restraint and movement limits must be confirmed for the actual frame; compatibility is not established by rack width alone.

Applications

• Rear equipment access
• AV service rooms

Planning considerations

• Swing clearance
• Cable movement allowance
• Equipment mounting details
